Mini tracked skid steer loader is Multi-functional construction equipment, it is small and easy to control.it could be easily and quickly attached to various accessories to achieve various works. our skid steer loader is widely used in gardens, manufacturing, construction sites, recycling, gardens, roads, Construction, farms and other industrial fields.

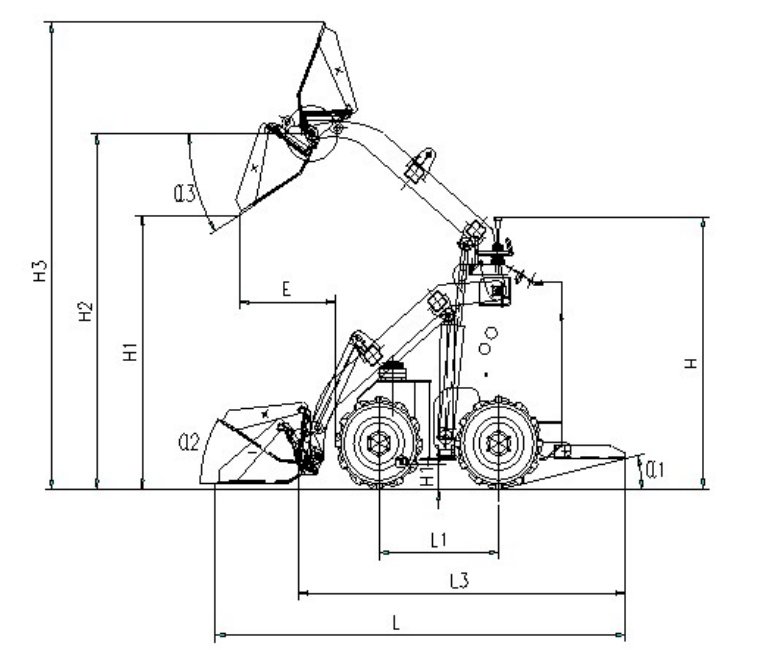

MODEL | HJ618T |
H2 Maximum pin shaft height | 1942mm |
H3 Maximum pin shaft height | 2200mm |
Q3 Maximum discharge angle | 30° |
Q2 Bucket take back angle | 26° |
departure angle | 10° |
H Max height | 1370mm |
H1 ground clearance | 140mm |
L1 Wheel base | 600mm |
L3 Length without bucket | 1750mm |

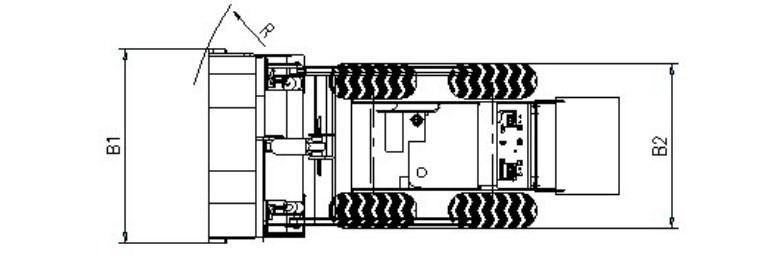

B2 Max width | 760mm |
B1 Bucket width | 740-800mm (adjustable) |
L Max Length | 2170mm |
Engine :Original briggs & stratton | |
Rated power | USA B.S Gasoline 10.5KW(13.5HP) |
Emission standard | EPA4 tier/Euro V tier |
Noise | ≤95Db |
Hydraulic system | |
Pressure | 17Mpa |
Working time | |
Lifting | 5.6s |
tipping bucket | 3s |
Down | 3.6s |
Bucket capacity | 200Kg |
Bucket volume | 0.07m³ |
Max lifting force | 215Kg |
Speed rate | 0-6Km/h |
Operaring weight | 660Kg |
Tire size | 5.00-8 or rubber tracked |
