Wheel skid steer loader is Multi-functional construction equipment, it is small and easy to control.it could be easily and quickly attached to various accessories to achieve various works. our wheel skid steer loader is widely used in gardens, manufacturing, construction sites, recycling, gardens, roads, Construction, farms and other industrial fields...

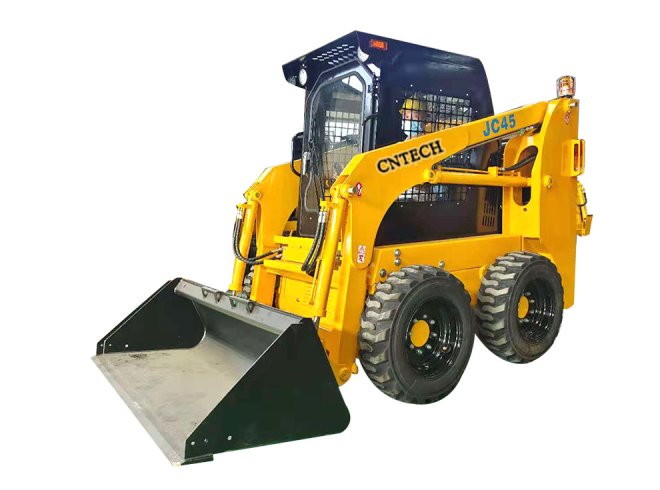

Model | JC45 | ||
Engiine modei | 490 | ||
Bore xstroke (mm) | 95X105 | ||
Rated power (Kw) | 37 | ||
Rotating speed ( rpm) | 2650 | ||
Number of cylinders | 4 | ||
Max. torque (N .m) | 156 | ||
Displace ment ( L) | 2.67 | ||
Max.Speed（km/h） | 12 | ||
Tire（track） modei | 10-16.5 | ||
Operating load (kg) | 700 | ||
Lifting | Arc lift | ||
Bucket capacity (m³) | 0.4 | ||
Rated flux (L/min) | 75 | ||
High Flow Flux (L/min) | |||
Fuel tank capacity (L) | 65 | ||
self weight bucket (kg) | 2700 | ||
Model Technical parameter | JC45 | ||
A | Overall operating height (mm) | 3980 | |
B | Height to bucket hinge pin (mm) | 3080 | |
C | Height to top of cab (mm) | 2140 | |
D | Height to bottom of level bucket(mm) | 2913 | |
E | Overall length ithout bucket（mm） | 2640 | |
F | Overall length with bucket(mm) | 3420 | |
G | Dumping angle at maximum height(°) | 40 | |
H | Dumping height(mm) | 2380 | |
I | Dumping reach(mm) | 700 | |
J | Rollback o bucket on ground(°) | 30 | |
K | Rollback of bucket at full height(°) | 104 | |
L | Wheelbase(mm) | 991 | |
M | Ground clearance(mm) | 185 | |
N | Angleof departure(°) | 20 | |
O | Front turning radins without bucket(mm) | 1168 | |
P | Front tuning radius(mm) | 1958 | |
Q | Rear tuning radius(mm) | 1630 | |
R | Rear axle to bumper (mm) | 1108 | |
S | Tread width,enterline to centerline (mm) | 1450 | |
T | Width (mm) | 1720 | |
U | Bucket width (mm) | 1740 | |
